Bộ truyền động Shimano Deore M610
Chất lượng hàng đầu cho xe đạp địa hình dù chạy đường dài hay leo núi với mọi địa hình. Đạt được hiệu suất cao, chính xác, bền bỉ, thao tác cơ cấu sang số nhẹ nhàng, phanh kiểm soát tốc độ tốt.

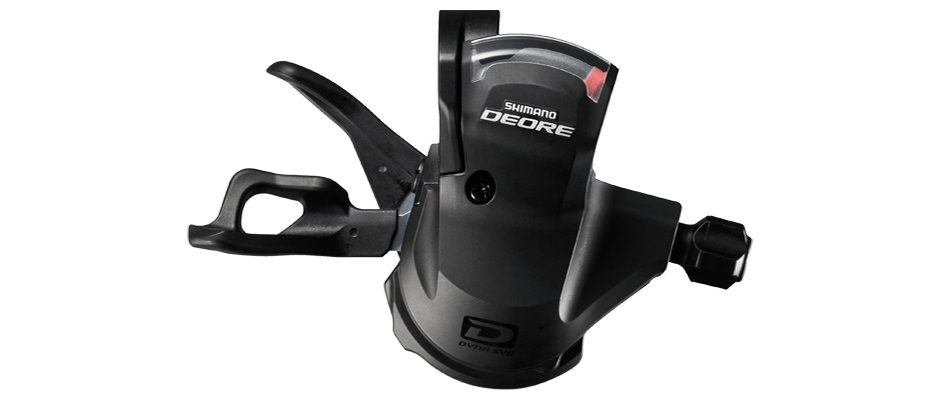

1. Tay đề số Shimano Deore M610
RAPIDFIRE Plus Shift Lever (10-speed)
| Model Number | SL-M610 |
| Series | Deore |
| Shift Lever Type | Rapidfire Plus |
| Front Shifting | 3 |
| 2-way Release | Yes |
| Optical Gear Display | Yes |
| Shift Cable Casing | OT-SP41 sealed |

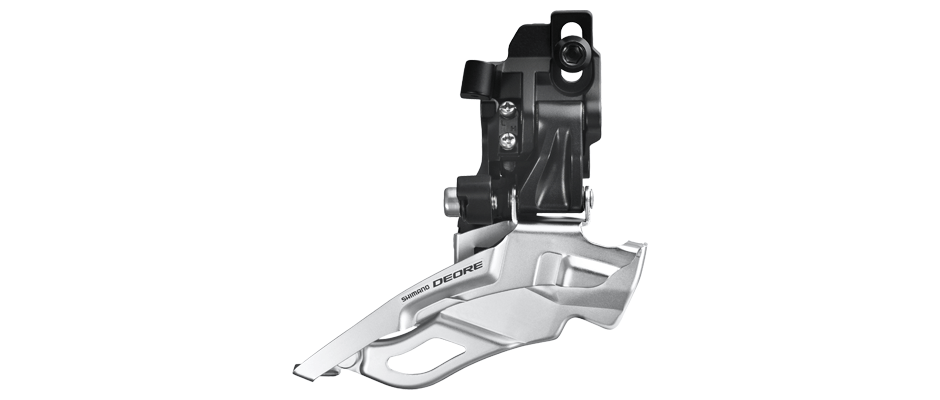

2. Gạt đĩa Shimano Deore M610
Direct Mount Down Swing Front Derailleur (3x10-Speed)
| Model Number | FD-M611-D |
| Series | Deore |
| Swing Action | Down Swing |
| Cassette Compatibility | CS-HG2-10 |
| Maximum Capacity | 18T |
| Top-middle Minimum Capacity | 10T |
| Top Gear Teeth | 42-40T |
| Chain Line | 50mm |
| Chain Stay Angle | 66-69 |
| Link Bushing | 8 |
| Average Weight | 146g (Dual pull), 141g (Top pull) |

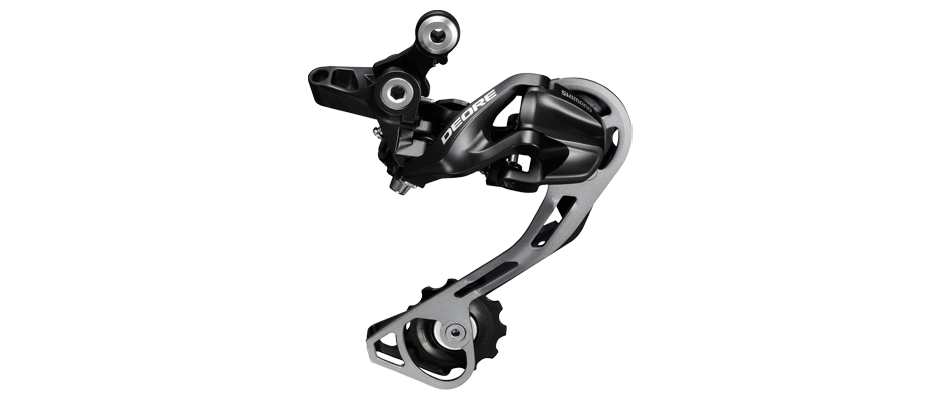

3. Gạt líp Shimano Deore M610
Direct Mount Rear Derailleur SGS (10-Speed)
| Model Number | RD-M610-SGS |
| Series | Deore |
| Shifting Action | Top-Normal |
| Maximum Sprocket | Low sprocket 36T /Top sprocket 11T |
| Minimum Sprocket | Low sprocket 32T /Top sprocket 11T |
| Front Difference | 22T |
| Total Capacity | 43T |
| Link Pin Bushings | 3 |
| Average Weight | 308g |

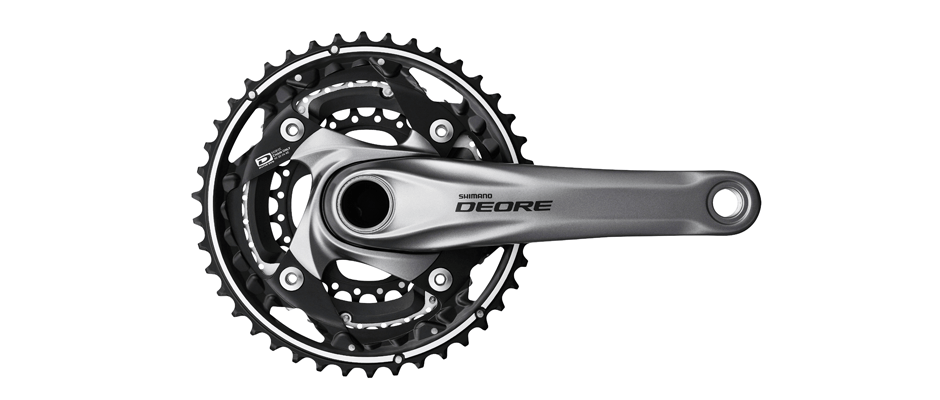

4. Đùi đĩa Shimano Deore M610
M610 DYNA-SYS Crankset (3x10-Speed)
| Model Number | FC-M610 |
| Series | Deore |
| Cassette Compatibility | CS-HG62-10 |
| Chain Compatibility | CN-HG54 |
| 42-32-24T |

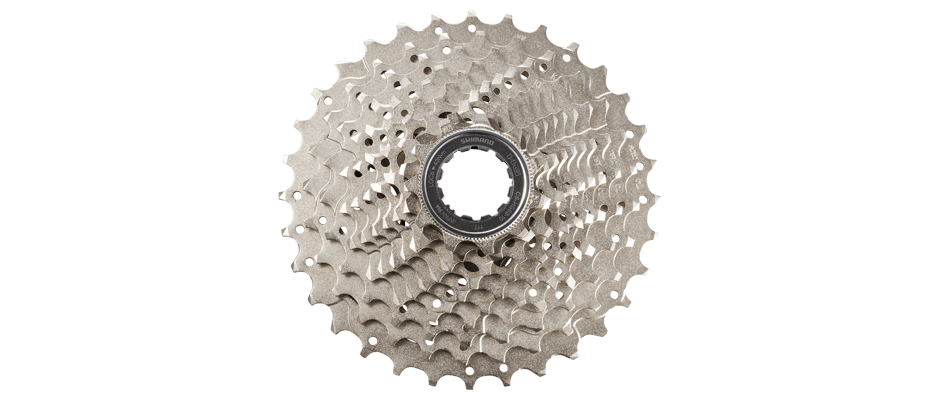

5. Líp Shimano Deore M610
HG62 HG-X Cassette Sprocket (10-Speed)
| Model Number | CS-HG62-10 |
| Series | Shimano |
| Chain Compatibility | HG-X 10-speed |
| Option 1 | 11-34T (bJ) |
| Sprocket Sizes | 11-13-15-17-19-21-23-26-30*-34* |
| Option 2 | 11-36T (bk) |
| Sprocket Sizes | 11-13-15-17-19-21-24-28-32*-36* |

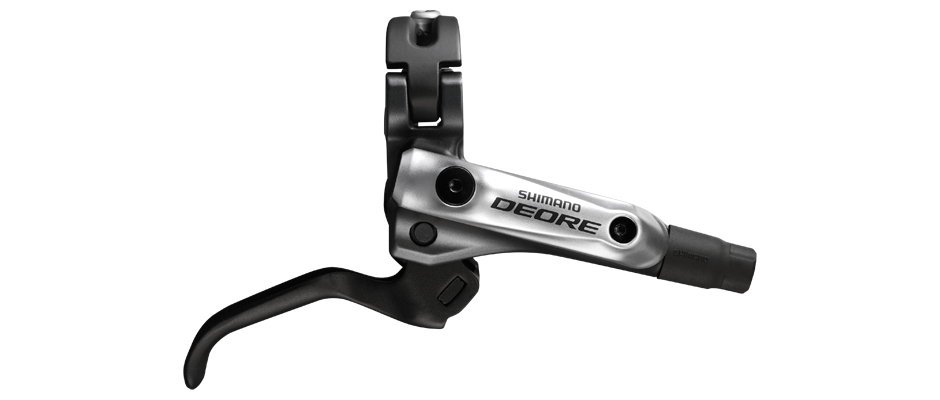

6. Phanh đĩa dầu Shimano Deore M610
Hydraulic Disc Brake Lever
| Model Number | BL-M615 |
| Series | Deore |
| Brake Compatibility | BR-M615 |
| Hydraulic Fluid | Shimano Mineral |
| Brake Hose Type | SM-BH90-SS |
| Brake Lever Size | 2 |
| Reach Adjuster | Yes |
