Bộ truyền động Shimano Alivio M4000
Các nhóm ALIVIO M4000 có đầy đủ các chức năng tiên tiến của SHIMANO. Những tính năng như 9 tốc độ, mạnh mẽ V-phanh và hệ thống phanh đĩa, và Rapidfire làm ALIVIO M4000 có xu hướng thiết lập về chất lượng xe đạp núi recretational.

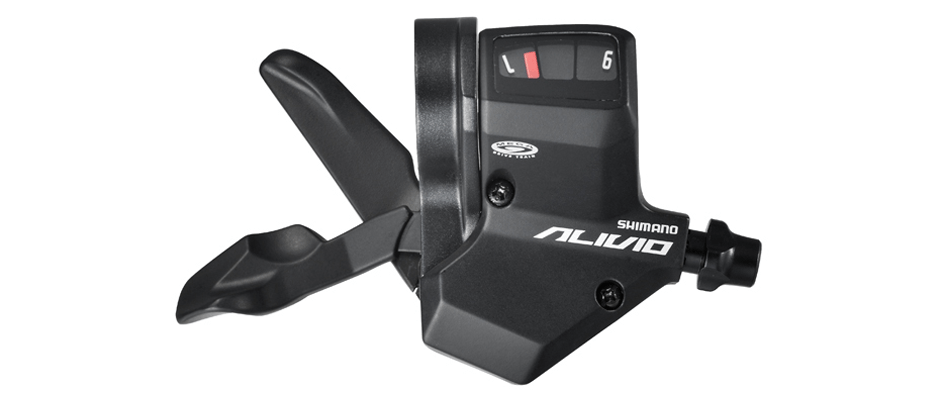

1. Tay đề số Shimano Alivio
RAPIDFIRE Plus Shift Lever (9-speed)
| Model Number | SL-M430 |
| Series | Alivio |
| Shift Lever Type | Rapidfire Plus |
| Front Shifting | 3-speed |
| 2-way Release | Yes |
| Optical Gear Display | Yes |
| Shift Cable Casing | OT-SP40 |

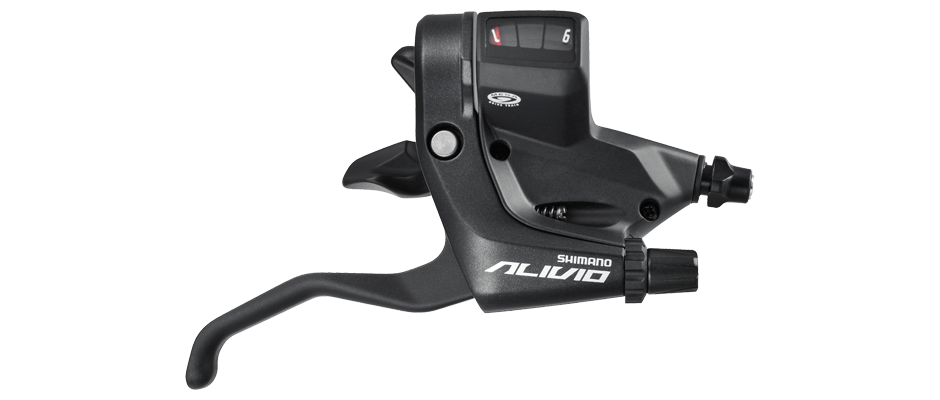

RAPIDFIRE Plus Shift/Brake Lever (3x9-Speed)
| Model Number | ST-M430 |
| Series | Alivio |
| Cassette Compatibility | 9-speed |
| Front Shifting | 3-speed |
| Optical Gear Display | Yes |
| Shift Cable Casing | OT-SP40 |
| Reach Adjuster | Yes |
| Cable Adjuster | Yes |
| Brake Compatibility | V-Brake |
| Brake Lever Size | 2 finger |

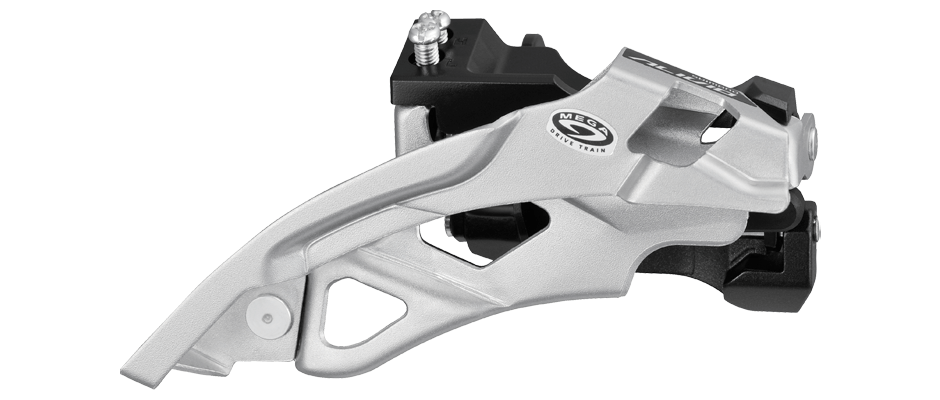

2. Gạt đĩa Shimano Alivio FD-M430
Top Swing Multi Clamp Front Derailleur (3x9-Speed)
| Model Number | FD-M430 |
| Series | Alivio |
| Swing Action | TOP-SWING |
| Cassette Compatibility | 9-speed |
| Maximum Capacity | 22T |
| Top-middle Minimum Capacity | 12T |
| Top Gear Teeth | 44T/48T |
| Cable Routing | dual-pull type |
| Chain Line | 50mm |
| Chain Stay Angle | 63-66 / 66-69 |
| Multi-Clamp (28.6/31.8/34.9mm) | yes |
| Seat Tube Band Mount | 28.6/31.8/34.9mm |

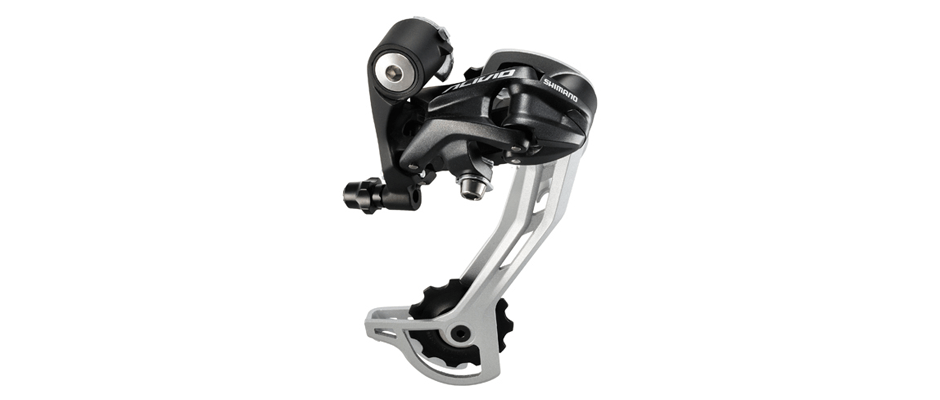

3. Gạt líp Shimano Alivio RD M430
Rear Derailleur SGS (9-Speed)
| Model Number | RD-M430 |
| Series | Alivio |
| Shifting Action | Top-Normal |
| Mount Type | Direct Attachment |
| Maximum Sprocket | 34T |
| Minimum Sprocket | 11T |
| Front Difference | 22T |
| Total Capacity | 45T |

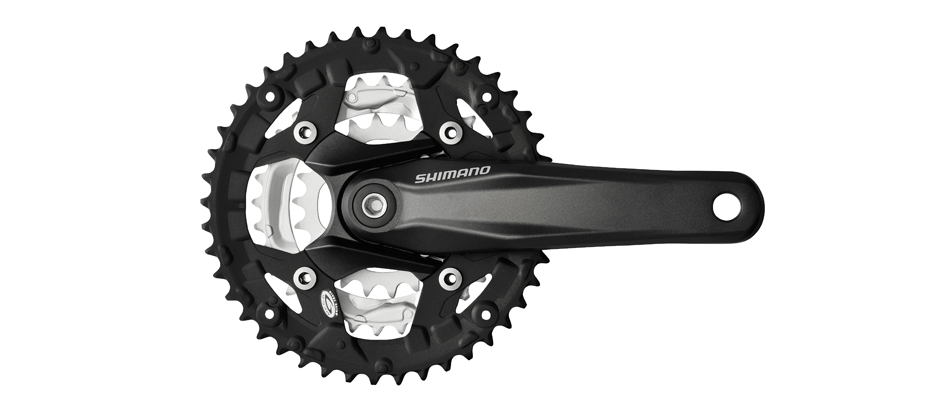

4. Đùi đĩa Shimano Alivio FC M430
M430 HYPERDRIVE Crankset (3x9-Speed)
| Model Number | FC-M430 |
| Series | Non-Series |
| Chain Compatibility | Supper Narrow HG for 9-speed |
| Chainring Sizes | 44-32-22T |
| Crank Arm Length | 170, 175mm |
| Chain Guard | Yes |
| Bottom Bracket | BB-UN26(-E) |
| Chain Line | 50mm |
| BB Shell Width | 68mm,70mm(Etype not available),73mm |

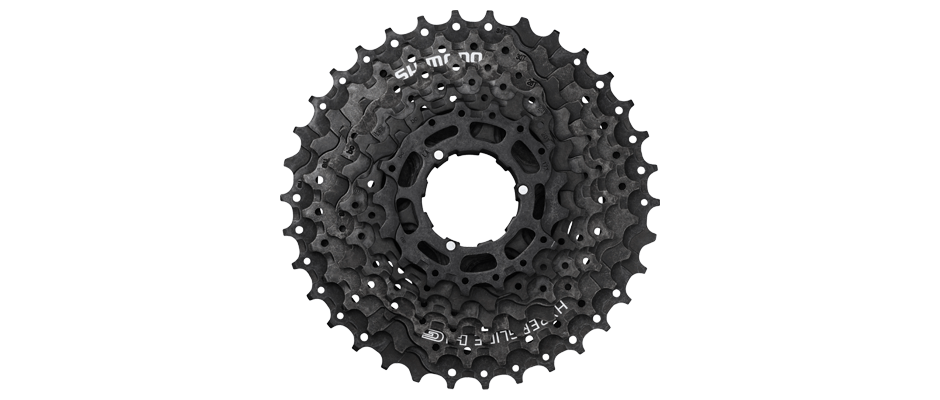

5. Líp Shimano Alivio
HG30 HG Cassette Sprocket (9-Speed)
| Model Number | CS-HG30-9 |
| Series | Non-Series |
| Chain Compatibility | Super Narrow HG for 9-speed |
| Option 1 | 11-32T (ar-group) |
| Sprocket Sizes | 11-12-14-16-18-21-24-28-32 |
| Option 2 | 11-34T(qu-group) |
| Sprocket Sizes | 11-13-15-17-20-23-26-30-34 |
