Bộ truyền động Shimano Acera M390 dùng cho xe MTB-Xe đạp địa hình
Với 3 từ nói về nhóm đồ Shimano Acera là chính xác, chính xác và phong cách. Hoạt động chính xác, ổn định, thao tác nhẹ nhàng, hiệu quả phanh tuyệt vời kiểm soát tốc độ chính xác. Thiết kế phong cách tinh tế và kiểu dáng mỏng.

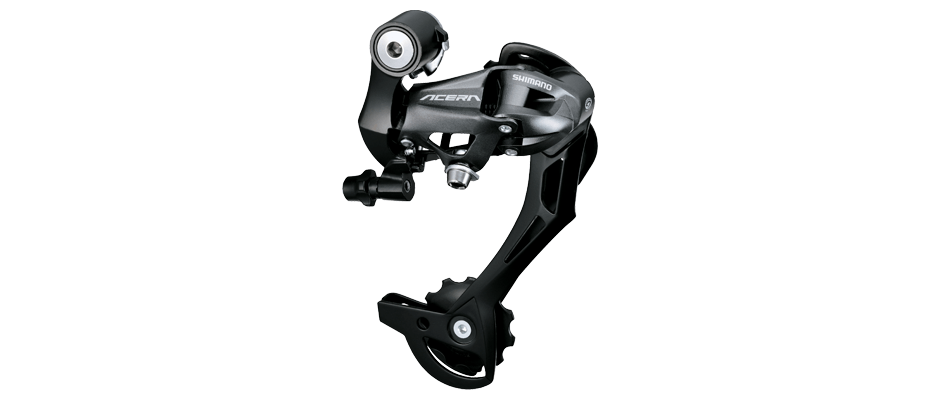

1. Gạt líp Shimano Acera M390
ACERA DIRECT MOUNT REAR DERAILLEUR SGS (9-SPEED)
|
Model Number |
RD-M390 |
| Series | Acera |
| Shifting Action | Top-Normal |
| Mount Type | Direct Attachment |
| Maximum Sprocket | 34T |
| Minimum Sprocket | 11T |
| Front Difference | 22T |
| Total Capacity | 45T |
| Average Weight | SGS |

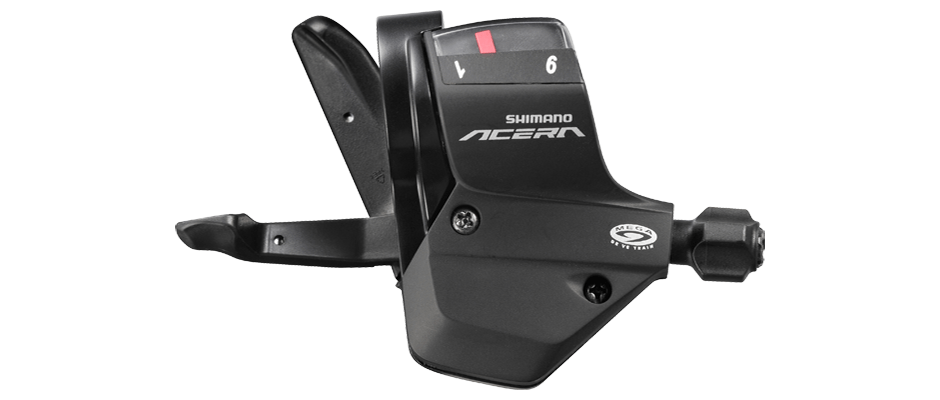

2.Tay đề số Shimano Acera M390
RAPIDFIRE Plus Shift Lever (9-speed)
| Model Number | SL-M390 |
| Series | Acera |
| Shift Lever Type | Rapidfire Plus |
| Rear speeds | 9-speed SIS |
| Front Shifting | 3-speed SIS |
| Instant Release | No |
| Multi Release | No |
| Optical Gear Display | X |
| Shift Cable Casing | OT-SP40 |
| Shift Cable | Option |

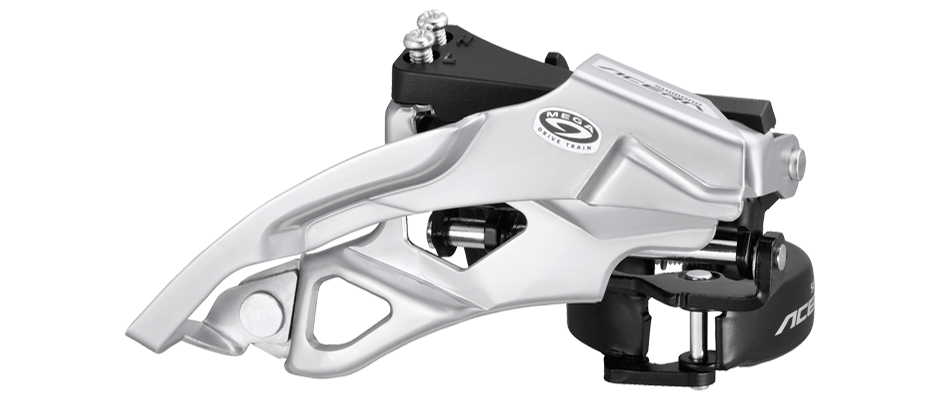

3. Gạt đĩa Shimano Acera M390
Top Swing Front Derailleur (3x9-Speed)
| Model Number | FD-M390 |
| Series | Acera |
| Swing Action | Top Swing Link |
| Cassette Compatibility | 9 |
| Maximum Capacity | 22T |
| Top-middle Minimum Capacity | 12T |
| Top Gear Teeth | 44/48T |
| Cable Routing | Dual Pull |
| Chain Line | 50.0 |
| Chain Stay Angle | 63-66/66-69 |
| Multi-Clamp (28.6/31.8/34.9mm) | Yes |
| Seat Tube Band Mount | 28.6/31.8/34.9mm |

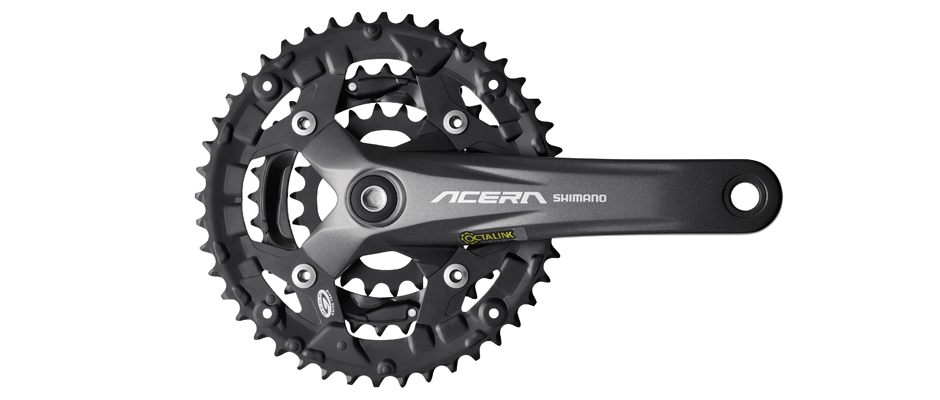

4. Đùi đĩa Shimano Acera M390
HYPERDRIVE Crankset (3x9-Speed)
| Model Number | FC-M391 |
| Series | Acera |
| Cassette Compatibility | 9 |
| Chain Compatibility | Super Narrow HG for 9-speed |
| 4-Arm Chainrings | Yes |
| Crank Arm Length | 170mm,175mm |
| Outer Chainring | 44T / 48T |
| Middle Chainring | 32T / 36T |
| Inner Chainring | 22T / 26T |
| Chainring Bolts & Nuts | Yes |
| Chain Guard | Option |
| Chaincase Compatible | Chain Case Compatible Crank Arm |
| Bottom Bracket | BB-UN26(-K) |
| Chain Line | 50.0 |
| BB Shell Width | LL123(-K) |

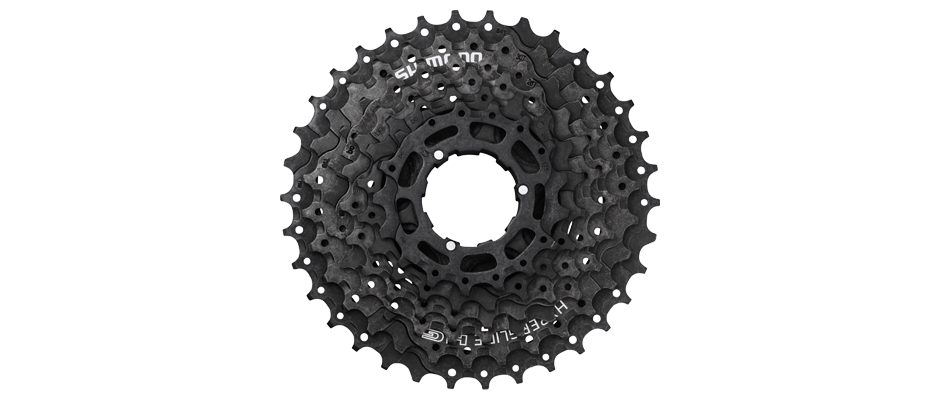

5. Líp Shimano Acera M390 (9 líp)
HG30 HG Cassette Sprocket (9-Speed)
| Model Number | CS-HG30-9 |
| Series | Non-Series |
| Chain Compatibility | Super Narrow HG for 9-speed |
| Option 1 | 11-32T (ar-group) |
| Sprocket Sizes | 11-12-14-16-18-21-24-28-32 |
| Option 2 | 11-34T(qu-group) |
| Sprocket Sizes | 11-13-15-17-20-23-26-30-34 |

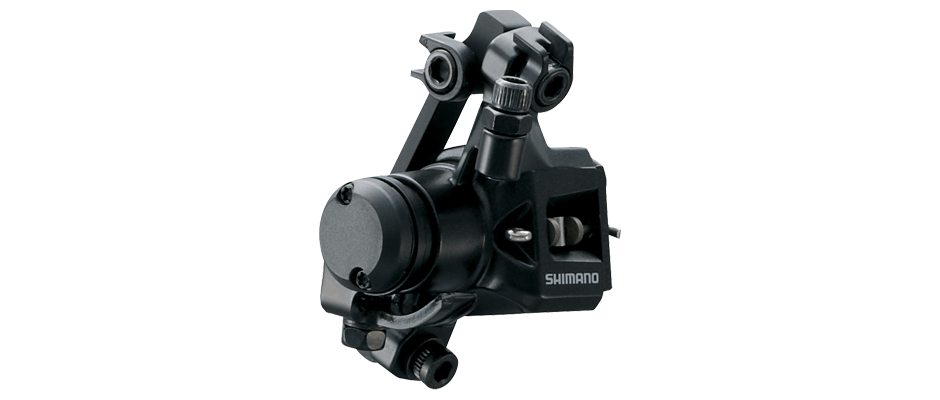

6. Phanh đĩa dầu Shimano Acera M390
Mechanical Disc Brake
| Model Number | BR-M416A |
| Series | Non-Series |
| Brake Type | Mechanical Disc Brake |
| Compatible Brake Lever | V-Brake BL (1.5-2.5 finger) |
| Brake Pad Types | Resin |
| Brake Hose Type | Cable |
| Caliper Mount Type | Post mount / Internal standard |
